源作者:
mgr.inz.Player
脚本版本: 1.0.4
功能:
CE会记录源始指令、跳转线将移动到右边以及按ALT+R键可撤销选择处的修改
AA注入之后，跳转线移动到右边
Manually altered line:

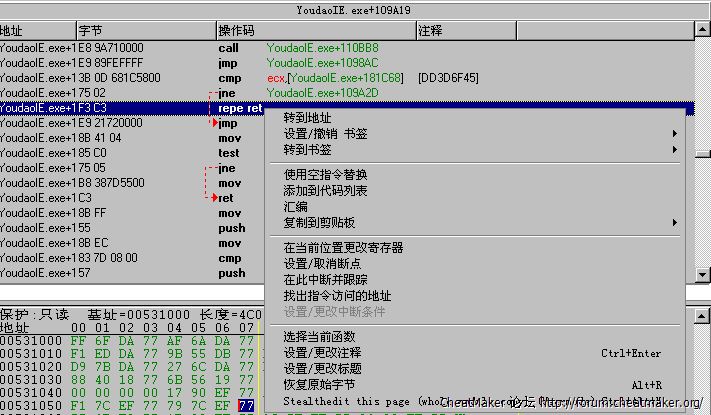

新的菜单项:
以下是lua脚本代码，使用方法为:代码复制粘贴到文本文档，并将文本文档的.txt后缀名修改成.lua，然后将此文本文档复制到CE目录中的autorun文件夹内，重启CE即可。
- function restoreOrigBytes(sender)
- if origBytesTable[selectedAddress_redo]==nil then return end
- local bytes={}
- local start=origBytesTable[selectedAddress_redo].startaddress
- local size=origBytesTable[selectedAddress_redo].size
- --prepare subset
- for i=1,size do bytes[#bytes+1]=origBytesTable[start+i-1].byte end
- local script=string.format('%X',start)..':\r\n'..'db '..'#'..(table.concat(bytes,' #'))
- skip_myAssemblerWithRedo=true
- if not autoAssemble(script) then return nil end
- skip_myAssemblerWithRedo=false
- end
- skip_myAssemblerWithRedo=false
- function myAssemblerWithRedo(addr,inst)
- if skip_myAssemblerWithRedo -- forced skip?
- or
- origBytesTable[addr]~=nil -- we already have collected orig bytes
- then return nil end
- local origsize=getInstructionSize(addr)
- local sizes={}
- local tmpVar=0
- -- get sizes of those next lines
- for i=1,20 do
- sizes[i]=getInstructionSize(addr+tmpVar)
- tmpVar=tmpVar+sizes[i]
- end
- --get bytes of those next lines
- local originalbytes=readBytes(addr,tmpVar,true)
- if originalbytes==nil then return nil end
- -- save original bytes if not already saved
- tmpVar=1
- for i=1,20 do
- for j=1,sizes[i] do
- local tmp={startaddress=addr, byte=originalbytes[tmpVar], size=sizes[i]}
- if not origBytesTable[addr+j-1] then origBytesTable[addr+j-1]=tmp end
- tmpVar=tmpVar+1
- end
- addr=addr+sizes[i]
- end
- return nil
- end
- getVisibleDisassembler().OnDisassembleOverride =
- function (vd, a, ldd)
- if origBytesTable[a]==nil then return nil,nil end -- 100% not changed
- disAsm_redo.syntaxhighlighting=vd.syntaxhighlighting
- disAsm_redo.disassemble(a)
- local modified=false
- local startbyte=origBytesTable[a].startaddress
- local endbyte=startbyte+origBytesTable[a].size-1
- -- search for differences
- for i=startbyte,endbyte do
- if disAsm_redo.LastDisassembleData.bytes[i-origBytesTable[a].startaddress+1]~=
- origBytesTable[i].byte
- then modified=true break end
- end
- if not modified then return nil,nil end -- bytes the same, not modified
- for k,v in pairs(disAsm_redo.LastDisassembleData) do ldd[k]=v end
- ldd.opcode=' '..ldd.opcode -- add few spaces at the beginning
- return ldd.opcode,ldd.description
- end
- function addRedoMenuItem()
- dv=getMemoryViewForm().DisassemblerView
- if redoMenuItem==nil then
- local pmenu=dv.PopupMenu
- redoMenuItem=createMenuItem(pmenu)
- pmenu.Items.add(redoMenuItem)
- end
- redoMenuItem.Caption='恢复原始字节'
- redoMenuItem.Shortcut='Alt+R'
- redoMenuItem.OnClick=restoreOrigBytes
- disassemblerview_onSelectionChange(dv,function (dv,a1,a2) selectedAddress_redo=a1 end)
- end
- if myAssemblerWithRedo_ID==nil then myAssemblerWithRedo_ID=registerAssembler(myAssemblerWithRedo) end
- if disAsm_redo==nil then disAsm_redo=createDisassembler() end
- if origBytesTable==nil then origBytesTable={} end
- addRedoMenuItem()
